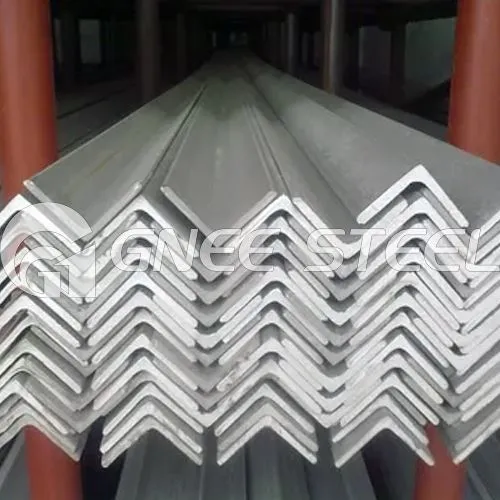

Ongl Dur Carbon JIS SS400 - Galfanedig a Paentio ymlaen llaw
Disgrifiad dur ongl SS400:
- Eitem: SS400 dur ongl.
- Safonol: JIS G3101-2004.
- Technoleg: rholio poeth.
- Math: cyfartal ac anghyfartal.
- Arwyneb: du neu galfanedig.
- Hyd: 6 m, 9 m, 12 m neu fesul eich cais.
Ongl gyfartal:
- Maint: 20 × 20 mm i 200 × 200 mm.
- Trwch: 3 i 20 mm.
- Hyd: 6 m, 9 m, 12 m neu fesul eich cais.
Ongl anghyfartal:
- Maint: 30 × 20 mm i 250 × 90 mm.
- Trwch: 3 i 10 mm.
- Hyd: 6 m, 9 m, 12 m neu fesul eich cais.
Ongl Dur Carbon JIS SS400 - Galfanedig a Paentio ymlaen llaw
Mae SS400 yn ddur carbon isel heb gynnwys carbon penodol. Yn ôl ei briodweddau mecanyddol, mae'n debyg i ASTM A36 a ddefnyddir yn helaeth mewn cymwysiadau peirianneg a diwydiannol. Mae ongl dur strwythurol JIS SS400 yn gymharol ddi-gost ac yn dangos yn dda mewn prosiectau peirianneg mawr.
Mae galfanedig dip poeth a rhag-baentio yn ddwy driniaeth arwyneb poblogaidd. Gan nad oes gan haearn ongl SS400 gynnwys copr nac elfennau aloi eraill, ni all wrthsefyll cyrydiad yr amgylchedd heb orchudd amddiffynnol ychwanegol fel cotio sinc. Mae swm y sinc wedi'i addasu yn dibynnu ar y cais penodol. Yn ogystal, mae yna lawer o liwiau ar gyfer paentio, sydd hefyd yn ychwanegu golwg esthetig. Ongl Dur Carbon JIS SS400 - Mae SS400 wedi'i galfaneiddio a'i baentio ymlaen llaw yn ddur carbon isel heb gynnwys carbon penodol. Yn ôl ei briodweddau mecanyddol, mae'n debyg i ASTM A36 a ddefnyddir yn helaeth mewn cymwysiadau peirianneg a diwydiannol. Mae ongl dur strwythurol JIS SS400 yn gymharol ddi-gost ac yn dangos yn dda mewn prosiectau peirianneg mawr. Dur ongl anghyfartal SS400 Mae galfanedig dip poeth a rhag-baentio yn ddwy driniaeth wyneb boblogaidd. Gan nad oes gan haearn ongl SS400 gynnwys copr nac elfennau aloi eraill, ni all wrthsefyll cyrydiad yr amgylchedd heb orchudd amddiffynnol ychwanegol fel cotio sinc. Mae swm y sinc wedi'i addasu yn dibynnu ar y cais penodol. Yn ogystal, mae yna lawer o liwiau ar gyfer paentio, sydd hefyd yn ychwanegu golwg esthetig.
Ongl Dur SS400 anghyfartal
| Gradd dur | Arddulliau | Carbon, uchafswm, % | Manganîs, % | Ffosfforws, uchafswm, % | Sylffwr, uchafswm, % |
|---|---|---|---|---|---|
| SS400 | Siapiau Dur | -- | -- | 0.050 | 0.050 |
| Gradd dur | Arddulliau | Cryfder tynnol, MPa | Pwynt cynnyrch, min, MPa | |
|---|---|---|---|---|
| Trwch, mm | ||||
| Llai na neu'n hafal i 16 | 16 - 40 | |||
| SS400 | Siapiau dur | 400 - 510 | Yn fwy na neu'n hafal i 245 | Yn fwy na neu'n hafal i 235 |
Meintiau dur ongl cyfartal JIS SS400:
| Eitem | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) | Eitem | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| ESS400001 | 20 | 20 | 3 | 0.889 | ESS400045 | 80 | 80 | 7 | 8.525 |
| ESS400002 | 20 | 20 | 4 | 1.145 | ESS400046 | 80 | 80 | 8 | 9.658 |
| ESS400003 | 25 | 25 | 3 | 1.124 | ESS400047 | 80 | 80 | 10 | 11.874 |
| ESS400004 | 25 | 25 | 4 | 1.459 | ESS400048 | 90 | 90 | 6 | 8.35 |
| ESS400005 | 30 | 30 | 3 | 1.373 | ESS400049 | 90 | 90 | 7 | 9.656 |
| ESS400006 | 30 | 30 | 4 | 1.786 | ESS400050 | 90 | 90 | 8 | 10.946 |
| ESS400007 | 35 | 35 | 3 | 1.578 | ESS400051 | 90 | 90 | 10 | 13.476 |
| ESS400008 | 35 | 35 | 4 | 2.072 | ESS400052 | 90 | 90 | 12 | 15.94 |
| ESS400009 | 35 | 35 | 5 | 2.551 | ESS400053 | 100 | 100 | 6 | 9.366 |
| ESS400010 | 40 | 40 | 3 | 1.852 | ESS400054 | 100 | 100 | 7 | 10.83 |
| ESS400011 | 40 | 40 | 4 | 2.422 | ESS400055 | 100 | 100 | 8 | 10.276 |
| ESS400012 | 40 | 40 | 5 | 1.976 | ESS400056 | 100 | 100 | 10 | 15.12 |
| ESS400013 | 44 | 44 | 3 | 2.002 | ESS400057 | 100 | 100 | 12 | 17.898 |
| ESS400014 | 44 | 44 | 4 | 2.638 | ESS400058 | 100 | 100 | 14 | 20.611 |
| ESS400015 | 38 | 38 | 3 | 1.719 | ESS400059 | 100 | 100 | 16 | 23.257 |
| ESS400016 | 38 | 38 | 4 | 2.261 | ESS400060 | 110 | 110 | 7 | 11.928 |
| ESS400017 | 48 | 48 | 3 | 2.19 | ESS400061 | 110 | 110 | 8 | 13.532 |
| ESS400018 | 48 | 48 | 4 | 2.889 | ESS400062 | 110 | 110 | 10 | 16.69 |
| ESS400019 | 48 | 48 | 5 | 3.572 | ESS400063 | 110 | 110 | 12 | 19.782 |
| ESS400020 | 50 | 50 | 3 | 2.332 | ESS400064 | 110 | 110 | 14 | 22.809 |
| ESS400021 | 50 | 50 | 4 | 3.059 | ESS400065 | 125 | 125 | 8 | 15.504 |
| ESS400022 | 50 | 50 | 5 | 3.77 | ESS400066 | 125 | 125 | 10 | 19.133 |
| ESS400023 | 50 | 50 | 6 | 4.465 | ESS400067 | 125 | 125 | 12 | 22.692 |
| ESS400024 | 56 | 56 | 3 | 2.624 | ESS400068 | 125 | 125 | 14 | 26.193 |
| ESS400025 | 56 | 56 | 4 | 3.446 | ESS400069 | 140 | 140 | 10 | 21.488 |
| ESS400026 | 56 | 56 | 5 | 4.251 | ESS400070 | 140 | 140 | 12 | 25.522 |
| ESS400027 | 56 | 56 | 6 | 6.568 | ESS400071 | 140 | 140 | 14 | 29.49 |
| ESS400028 | 63 | 63 | 4 | 3.907 | ESS400072 | 140 | 140 | 16 | 33.393 |
| ESS400029 | 63 | 63 | 5 | 4.822 | ESS400073 | 160 | 160 | 10 | 24.724 |
| ESS400030 | 63 | 63 | 6 | 5.721 | ESS400074 | 160 | 160 | 12 | 29.391 |
| ESS400031 | 63 | 63 | 8 | 7.469 | ESS400075 | 160 | 160 | 14 | 33.987 |
| ESS400032 | 63 | 63 | 10 | 9.151 | ESS400076 | 160 | 160 | 16 | 38.518 |
| ESS400033 | 70 | 70 | 4 | 4.372 | ESS400077 | 180 | 180 | 12 | 33.159 |
| ESS400034 | 70 | 70 | 5 | 5.397 | ESS400078 | 180 | 180 | 14 | 35.383 |
| ESS400035 | 70 | 70 | 6 | 6.406 | ESS400079 | 180 | 180 | 16 | 43.452 |
| ESS400036 | 70 | 70 | 7 | 7.398 | ESS400080 | 180 | 180 | 18 | 48.634 |
| ESS400037 | 70 | 70 | 8 | 8.373 | ESS400081 | 200 | 200 | 14 | 42.894 |
| ESS400038 | 75 | 75 | 5 | 5.818 | ESS400082 | 200 | 200 | 16 | 48.56 |
| ESS400039 | 75 | 75 | 6 | 6.905 | ESS400083 | 200 | 200 | 18 | 54.501 |
| ESS400040 | 75 | 75 | 7 | 7.976 | ESS400084 | 200 | 200 | 20 | 60.056 |
| ESS400041 | 75 | 75 | 8 | 9.03 | ESS400085 | 200 | 200 | 22 | 71.168 |
| ESS400042 | 75 | 75 | 10 | 11.089 | Hyd=6 - 12 metr SS400 neu Q235 | ||||
| ESS400043 | 80 | 80 | 5 | 6.211 | |||||
| ESS400044 | 80 | 80 | 6 | 7.376 | |||||
Maint dur ongl anghyfartal JIS SS400:
| Rhif yr eitem. | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) | Rhif yr eitem. | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UESS400001 | 30 | 20 | 3 | 1.14 | UESS400045 | 100 | 50 | 6 | 6.98 |
| UESS400002 | 30 | 20 | 4 | 1.49 | UESS400046 | 100 | 50 | 8 | 9.16 |
| UESS400003 | 40 | 20 | 3 | 1.38 | UESS400047 | 100 | 50 | 10 | 11.3 |
| UESS400004 | 40 | 20 | 3 | 1.8 | UESS400048 | 100 | 65 | 7 | 8.96 |
| UESS400005 | 40 | 25 | 4 | 1.97 | UESS400049 | 100 | 65 | 8 | 10.2 |
| UESS400006 | 45 | 30 | 4 | 2.3 | UESS400050 | 100 | 65 | 9 | 11.3 |
| UESS400007 | 45 | 30 | 5 | 2.82 | UESS400051 | 100 | 65 | 10 | 12.5 |
| UESS400008 | 50 | 30 | 5 | 3.02 | UESS400052 | 100 | 75 | 7 | 9.52 |
| UESS400009 | 50 | 30 | 6 | 3.58 | UESS400053 | 100 | 75 | 8 | 10.8 |
| UESS400010 | 50 | 40 | 4 | 2.77 | UESS400054 | 100 | 75 | 9 | 12.1 |
| UESS400011 | 50 | 40 | 5 | 3.42 | UESS400055 | 100 | 75 | 10 | 13.3 |
| UESS400012 | 50 | 40 | 6 | 4.03 | UESS400056 | 100 | 75 | 11 | 14.6 |
| UESS400013 | 60 | 30 | 5 | 3.43 | UESS400057 | 100 | 75 | 12 | 15.8 |
| UESS400014 | 60 | 30 | 6 | 4.06 | UESS400058 | 120 | 80 | 8 | 12.4 |
| UESS400015 | 60 | 30 | 7 | 4.68 | UESS400059 | 120 | 80 | 10 | 15.3 |
| UESS400016 | 60 | 40 | 5 | 3.83 | UESS400060 | 120 | 80 | 12 | 18.2 |
| UESS400017 | 60 | 40 | 6 | 4.54 | UESS400061 | 130 | 65 | 8 | 12.1 |
| UESS400018 | 60 | 40 | 7 | 5.24 | UESS400062 | 130 | 65 | 10 | 14.9 |
| UESS400019 | 65 | 50 | 5 | 4.43 | UESS400063 | 130 | 65 | 12 | 17.7 |
| UESS400020 | 65 | 50 | 6 | 5.26 | UESS400064 | 130 | 75 | 8 | 12.7 |
| UESS400021 | 65 | 50 | 7 | 6.08 | UESS400065 | 130 | 75 | 10 | 15.7 |
| UESS400022 | 65 | 50 | 8 | 6.88 | UESS400066 | 130 | 75 | 12 | 18.6 |
| UESS400023 | 75 | 50 | 5 | 4.83 | UESS400067 | 130 | 90 | 10 | 17 |
| UESS400024 | 75 | 50 | 6 | 5.75 | UESS400068 | 130 | 90 | 12 | 20.1 |
| UESS400025 | 75 | 50 | 7 | 6.65 | UESS400069 | 150 | 75 | 9 | 15.7 |
| UESS400026 | 75 | 50 | 8 | 7.53 | UESS400070 | 150 | 75 | 10 | 17.4 |
| UESS400027 | 75 | 50 | 9 | 8.4 | UESS400071 | 150 | 75 | 11 | 18.9 |
| UESS400028 | 75 | 55 | 5 | 5.04 | UESS400072 | 150 | 75 | 12 | 20.6 |
| UESS400029 | 75 | 55 | 7 | 6.93 | UESS400073 | 150 | 90 | 10 | 18.6 |
| UESS400030 | 75 | 65 | 6 | 6.49 | UESS400074 | 150 | 90 | 12 | 22 |
| UESS400031 | 75 | 65 | 8 | 8.48 | UESS400075 | 150 | 90 | 15 | 27.1 |
| UESS400032 | 75 | 65 | 10 | 10.5 | UESS400076 | 150 | 100 | 10 | 19.3 |
| UESS400033 | 80 | 40 | 6 | 5.51 | UESS400077 | 150 | 100 | 12 | 23 |
| UESS400034 | 80 | 40 | 8 | 7.21 | UESS400078 | 150 | 100 | 14 | 26.6 |
| UESS400035 | 80 | 60 | 6 | 6.49 | UESS400079 | 160 | 80 | 10 | 18.5 |
| UESS400036 | 80 | 60 | 7 | 7.5 | UESS400080 | 160 | 80 | 12 | 22 |
| UESS400037 | 80 | 60 | 8 | 8.48 | UESS400081 | 160 | 80 | 14 | 25.4 |
| UESS400038 | 80 | 65 | 6 | 6.73 | UESS400082 | 200 | 100 | 10 | 23.4 |
| UESS400039 | 80 | 65 | 8 | 8.82 | UESS400083 | 200 | 100 | 12 | 27.8 |
| UESS400040 | 80 | 65 | 10 | 10.9 | UESS400084 | 200 | 100 | 15 | 34.4 |
| UESS400041 | 90 | 65 | 6 | 7.22 | UESS400085 | 250 | 90 | 10 | 26.6 |
| UESS400042 | 90 | 65 | 7 | 8.32 | Deunydd: JIS SS400 Hyd=6 - 12 metr | ||||
| UESS400043 | 90 | 65 | 8 | 9.44 | |||||
| UESS400044 | 90 | 65 | 10 | 11.7 | |||||
Post haearn ongl SS400 o ffensys cyswllt cadwyn
