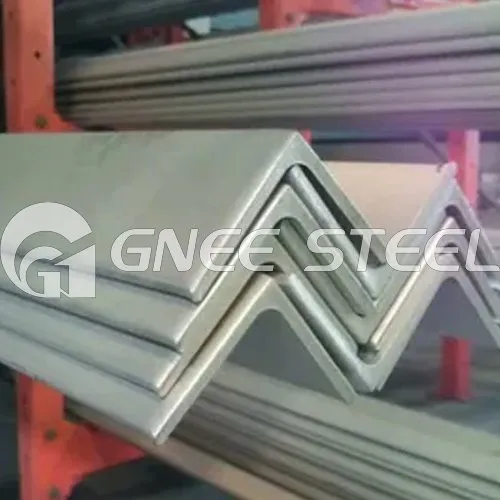

Ongl dur strwythurol A588sydd â choesau cyfartal neu anghyfartal. Gallwch ddod o hyd i'r manylion yn y tabl isod. Os yw'ch cofnod ar gyfer maint ongl ddur arbennig, e-bostiwch eich maint wedi'i addasu atom pan fydd eich archeb yn gyfartal neu'n fwy na'n maint lleiaf.
Disgrifiad ongl dur A588:
Gradd dur: A588.
Manyleb: ASTM A588.
Technoleg: rholio poeth.
Math: cyfartal & anghyfartal.
Hyd: 6 m, 9 m, 12 m neu fesul eich cais.
Ongl gyfartal:
Maint: 20 × 20 mm - 200 × 200 mm.
Trwch: 3 i 22 mm.
Hyd: 6 m, 9 m, 12 m neu fesul eich cais.
Ongl anghyfartal:
Maint: 20 × 30 i 90 mm × 250 mm.
Trwch: 3 i 15 mm.
Hyd: 6 m, 9 m, 12 m neu fesul eich cais.
Nodyn: Mae meintiau dur ongl arbennig ar gael os yw maint eich archeb yn fwy na'r lleiafswm.
Angle Dur HSLA Cryfder Uchel ASTM A588
Mae ASTM A588 yn fath o ddur HSLA (cryfder uchel, aloi isel) sy'n cwmpasu swm bach o elfennau aloi - copr, cromiwm a nicel. Mae'r elfennau aloi hyn yn gwella eiddo A588 yn effeithiol ac yn ehangu ei gymwysiadau. Yn gyntaf, mae cyfansoddiad aloi yn ychwanegu ei gryfder pwynt cynnyrch i 50ksi a chryfder tynnol i 70ksi. Yn ail, gyda chynnwys copr, mae gan A588 ymwrthedd cyrydol awyrgylch da a gweithio am amser hirach. Rhowch ei briodweddau cynhwysfawr rhagorol,Haearn ongl dur A588yn cael ei ddefnyddio'n helaeth mewn pontydd, adeiladu a chymwysiadau strwythurol eraill.
Manteision & nodweddion ongl dur ASTM A588:
Yn cynnwys ychydig bach o gromiwm, copr a nicel.
Cymhareb pwysau/cryfder is.
Yn gwrthsefyll cyrydiad atmosffer.
Delfrydol ar gyfer cryfder uchel a chymwysiadau sy'n agored i'r tywydd.
Gellir archebu swm aloi at ddiben unigryw.
Cost llai yn y tymor hir.
Beth yw'r gwahaniaeth rhwng A588 a dur carbon A36?
Mae ASTM A588 yn ddur strwythurol aloi isel cryfder uchel, tra bod A36 yn ddur carbon yn unig.
Oherwydd y gwahaniaeth mewn cynnwys cemegol, mae gan ddur ongl A588 fwy o gymwysiadau na bar ongl ysgafn A36.
Haearn ongl A588 yn ddelfrydol ar gyfer amgylcheddau cyrydol heb driniaeth arwyneb bellach sy'n lleihau cost effeithiol.
Bar dur ongl A588 gyda phwynt cryfder cynnyrch uwch nag A36, sy'n caniatáu pwysau ysgafn ar gyfer yr un cyflwr.
| Gradd dur | Carbon, uchafswm, % | Manganîs, % | Ffosfforws, uchafswm, % | Sylffwr, uchafswm, % | Silicon, % | Nicel, uchafswm, % | Cromiwm, % | Copr | Fanadiwm, % |
|---|---|---|---|---|---|---|---|---|---|
| A588 Gradd A | 0.19 | 0.80 - 1.25 | 0.04 | 0.05 | 0.30 - 0.65 | 0.40 | 0.40 - 0.65 | 0.25 - 0.40 | 0.02 - 0.10 |
| Gradd dur | Arddulliau | Cryfder tynnol, ksi [MPa] | Pwynt cynnyrch, mun, ksi [MPa] | Elongation mewn 8 modfedd [200 mm], min, % | Elongation mewn 2 modfedd [50 mm], min, % |
|---|---|---|---|---|---|
| A588 Gradd A | Onglau dur | 70 [485] | 50 [345] | 18 | 21 |
Maint Dur Ongl Gyfartal ASTM A588:
| Eitem | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) | Eitem | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| EA588001 | 20 | 20 | 3 | 0.889 | EA588045 | 80 | 80 | 7 | 8.525 |
| EA588002 | 20 | 20 | 4 | 1.145 | EA588046 | 80 | 80 | 8 | 9.658 |
| EA588003 | 25 | 25 | 3 | 1.124 | EA588047 | 80 | 80 | 10 | 11.874 |
| EA588004 | 25 | 25 | 4 | 1.459 | EA588048 | 90 | 90 | 6 | 8.35 |
| EA588005 | 30 | 30 | 3 | 1.373 | EA588049 | 90 | 90 | 7 | 9.656 |
| EA588006 | 30 | 30 | 4 | 1.786 | EA588050 | 90 | 90 | 8 | 10.946 |
| EA588007 | 35 | 35 | 3 | 1.578 | EA588051 | 90 | 90 | 10 | 13.476 |
| EA588008 | 35 | 35 | 4 | 2.072 | EA588052 | 90 | 90 | 12 | 15.94 |
| EA588009 | 35 | 35 | 5 | 2.551 | EA588053 | 100 | 100 | 6 | 9.5296 |
| EA588010 | 40 | 40 | 3 | 1.852 | EA588054 | 100 | 100 | 7 | 10.83 |
| EA588011 | 40 | 40 | 4 | 2.422 | EA588055 | 100 | 100 | 8 | 10.276 |
| EA588012 | 40 | 40 | 5 | 1.976 | EA588056 | 100 | 100 | 10 | 15.12 |
| EA588013 | 44 | 44 | 3 | 2.002 | EA588057 | 100 | 100 | 12 | 17.898 |
| EA588014 | 44 | 44 | 4 | 2.638 | EA588058 | 100 | 100 | 14 | 20.611 |
| EA588015 | 38 | 38 | 3 | 1.719 | EA588059 | 100 | 100 | 16 | 23.257 |
| EA588016 | 38 | 38 | 4 | 2.261 | EA588060 | 110 | 110 | 7 | 11.928 |
| EA588017 | 48 | 48 | 3 | 2.19 | EA588061 | 110 | 110 | 8 | 13.532 |
| EA588018 | 48 | 48 | 4 | 2.889 | EA588062 | 110 | 110 | 10 | 16.69 |
| EA588019 | 48 | 48 | 5 | 3.572 | EA588063 | 110 | 110 | 12 | 19.782 |
| EA588020 | 50 | 50 | 3 | 2.332 | EA588064 | 110 | 110 | 14 | 22.809 |
| EA588021 | 50 | 50 | 4 | 3.059 | EA588065 | 125 | 125 | 8 | 15.504 |
| EA588022 | 50 | 50 | 5 | 3.77 | EA588066 | 125 | 125 | 10 | 19.133 |
| EA588023 | 50 | 50 | 6 | 4.465 | EA588067 | 125 | 125 | 12 | 22.692 |
| EA588024 | 56 | 56 | 3 | 2.624 | EA588068 | 125 | 125 | 14 | 26.193 |
| EA588025 | 56 | 56 | 4 | 3.446 | EA588069 | 140 | 140 | 10 | 21.488 |
| EA588026 | 56 | 56 | 5 | 4.251 | EA588070 | 140 | 140 | 12 | 25.522 |
| EA588027 | 56 | 56 | 6 | 6.568 | EA588071 | 140 | 140 | 14 | 29.49 |
| EA588028 | 63 | 63 | 4 | 3.907 | EA588072 | 140 | 140 | 16 | 33.393 |
| EA588029 | 63 | 63 | 5 | 4.822 | EA588073 | 160 | 160 | 10 | 24.724 |
| EA588030 | 63 | 63 | 6 | 5.721 | EA588074 | 160 | 160 | 12 | 29.391 |
| EA588031 | 63 | 63 | 8 | 7.469 | EA588075 | 160 | 160 | 14 | 33.987 |
| EA588032 | 63 | 63 | 10 | 9.151 | EA588076 | 160 | 160 | 16 | 38.518 |
| EA588033 | 70 | 70 | 4 | 4.372 | EA588077 | 180 | 180 | 12 | 33.159 |
| EA588034 | 70 | 70 | 5 | 5.397 | EA588078 | 180 | 180 | 14 | 35.383 |
| EA588035 | 70 | 70 | 6 | 6.406 | EA588079 | 180 | 180 | 16 | 43.452 |
| EA5880529 | 70 | 70 | 7 | 7.398 | EA588080 | 180 | 180 | 18 | 48.634 |
| EA588037 | 70 | 70 | 8 | 8.373 | EA588081 | 200 | 200 | 14 | 42.894 |
| EA588038 | 75 | 75 | 5 | 5.818 | EA588082 | 200 | 200 | 16 | 48.56 |
| EA588039 | 75 | 75 | 6 | 6.905 | EA588083 | 200 | 200 | 18 | 54.501 |
| EA588040 | 75 | 75 | 7 | 7.976 | EA588084 | 200 | 200 | 20 | 60.056 |
| EA588041 | 75 | 75 | 8 | 9.03 | EA588085 | 200 | 200 | 22 | 71.168 |
| EA588042 | 75 | 75 | 10 | 11.089 | Hyd=6 - 12 metr | ||||
| EA588043 | 80 | 80 | 5 | 6.211 | |||||
| EA588044 | 80 | 80 | 6 | 7.376 | |||||
Maint Dur Ongl Anghyfartal ASTM A588:
| Rhif yr eitem. | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) | Rhif yr eitem. | Coes 1 (mm) | Coes 2 (mm) | Trwch (mm) | Pwysau (kg/m) |
|---|---|---|---|---|---|---|---|---|---|
| UEA588001 | 30 | 20 | 3 | 1.14 | UEA588045 | 100 | 50 | 6 | 6.98 |
| UEA588002 | 30 | 20 | 4 | 1.49 | UEA588046 | 100 | 50 | 8 | 9.16 |
| UEA588003 | 40 | 20 | 3 | 1.38 | UEA588047 | 100 | 50 | 10 | 11.3 |
| UEA588004 | 40 | 20 | 3 | 1.8 | UEA588048 | 100 | 65 | 7 | 8.96 |
| UEA588005 | 40 | 25 | 4 | 1.97 | UEA588049 | 100 | 65 | 8 | 10.2 |
| UEA588006 | 45 | 30 | 4 | 2.3 | UEA588050 | 100 | 65 | 9 | 11.3 |
| UEA588007 | 45 | 30 | 5 | 2.82 | UEA588051 | 100 | 65 | 10 | 12.5 |
| UEA588008 | 50 | 30 | 5 | 3.02 | UEA588052 | 100 | 75 | 7 | 9.52 |
| UEA588009 | 50 | 30 | 6 | 3.58 | UEA588053 | 100 | 75 | 8 | 10.8 |
| UEA588010 | 50 | 40 | 4 | 2.77 | UEA588054 | 100 | 75 | 9 | 12.1 |
| UEA588011 | 50 | 40 | 5 | 3.42 | UEA588055 | 100 | 75 | 10 | 13.3 |
| UEA588012 | 50 | 40 | 6 | 4.03 | UEA588056 | 100 | 75 | 11 | 14.6 |
| UEA588013 | 60 | 30 | 5 | 3.43 | UEA588057 | 100 | 75 | 12 | 15.8 |
| UEA588014 | 60 | 30 | 6 | 4.06 | UEA588058 | 120 | 80 | 8 | 12.4 |
| UEA588015 | 60 | 30 | 7 | 4.68 | UEA588059 | 120 | 80 | 10 | 15.3 |
| UEA588016 | 60 | 40 | 5 | 3.83 | UEA588060 | 120 | 80 | 12 | 18.2 |
| UEA588017 | 60 | 40 | 6 | 4.54 | UEA588061 | 130 | 65 | 8 | 12.1 |
| UEA588018 | 60 | 40 | 7 | 5.24 | UEA588062 | 130 | 65 | 10 | 14.9 |
| UEA588019 | 65 | 50 | 5 | 4.43 | UEA588063 | 130 | 65 | 12 | 17.7 |
| UEA588020 | 65 | 50 | 6 | 5.26 | UEA588064 | 130 | 75 | 8 | 12.7 |
| UEA588021 | 65 | 50 | 7 | 6.08 | UEA588065 | 130 | 75 | 10 | 15.7 |
| UEA588022 | 65 | 50 | 8 | 6.88 | UEA588066 | 130 | 75 | 12 | 18.6 |
| UEA588023 | 75 | 50 | 5 | 4.83 | UEA588067 | 130 | 90 | 10 | 17 |
| UEA588024 | 75 | 50 | 6 | 5.75 | UEA588068 | 130 | 90 | 12 | 20.1 |
| UEA588025 | 75 | 50 | 7 | 6.65 | UEA588069 | 150 | 75 | 9 | 15.7 |
| UEA588026 | 75 | 50 | 8 | 7.53 | UEA588070 | 150 | 75 | 10 | 17.4 |
| UEA588027 | 75 | 50 | 9 | 8.4 | UEA588071 | 150 | 75 | 11 | 18.9 |
| UEA588028 | 75 | 55 | 5 | 5.04 | UEA588072 | 150 | 75 | 12 | 20.6 |
| UEA588029 | 75 | 55 | 7 | 6.93 | UEA588073 | 150 | 90 | 10 | 18.6 |
| UEA588030 | 75 | 65 | 6 | 6.49 | UEA588074 | 150 | 90 | 12 | 22 |
| UEA588031 | 75 | 65 | 8 | 8.48 | UEA588075 | 150 | 90 | 15 | 27.1 |
| UEA588032 | 75 | 65 | 10 | 10.5 | UEA588076 | 150 | 100 | 10 | 19.3 |
| UEA588033 | 80 | 40 | 6 | 5.51 | UEA588077 | 150 | 100 | 12 | 23 |
| UEA588034 | 80 | 40 | 8 | 7.21 | UEA588078 | 150 | 100 | 14 | 26.6 |
| UEA588035 | 80 | 60 | 6 | 6.49 | UEA588079 | 160 | 80 | 10 | 18.5 |
| UEA5880529 | 80 | 60 | 7 | 7.5 | UEA588080 | 160 | 80 | 12 | 22 |
| UEA588037 | 80 | 60 | 8 | 8.48 | UEA588081 | 160 | 80 | 14 | 25.4 |
| UEA588038 | 80 | 65 | 6 | 6.73 | UEA588082 | 200 | 100 | 10 | 23.4 |
| UEA588039 | 80 | 65 | 8 | 8.82 | UEA588083 | 200 | 100 | 12 | 27.8 |
| UEA588040 | 80 | 65 | 10 | 10.9 | UEA588084 | 200 | 100 | 15 | 34.4 |
| UEA588041 | 90 | 65 | 6 | 7.22 | UEA588085 | 250 | 90 | 10 | 26.6 |
| UEA588042 | 90 | 65 | 7 | 8.32 | Deunydd: ASTM A588 Hyd=6 - 12 metr | ||||
| UEA588043 | 90 | 65 | 8 | 9.44 | |||||
| UEA588044 | 90 | 65 | 10 | 11.7 | |||||
